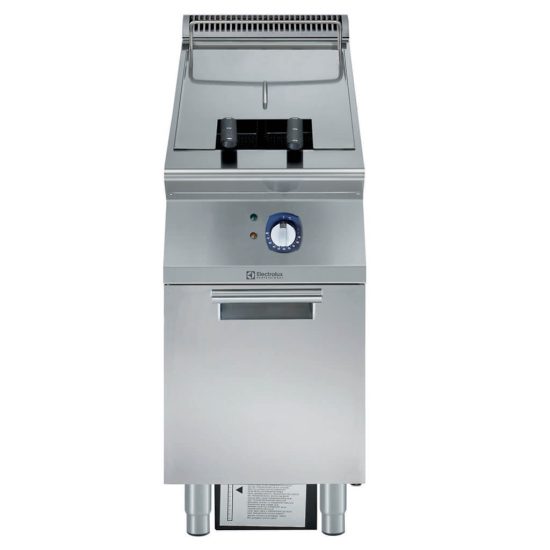

23-lt electric Fryer with 1 “V” shaped well (external heating elements) and 2 half size baskets

Main Features

· Thermostatic regulation of oil temperature up
to a maximum of 185 °C.
· External infrared heating elements with
innovative deflectors applied to the well for
ease of cleaning of the internal well and safe
operations.
· Optional portable oil quality monitoring tool
(code 9B8081) for efficient oil management.
· Deep drawn V-Shaped well.
· Overheat protection thermostat as standard
on all units.
· All major compartments located in front of unit
for ease of maintenance.
· IPX5 water resistance certification.
· The special design of the control knob system
guarantees against water infiltration.
· External panels in Stainless Steel with Scotch
Brite finish.
· Supplied as standard with 2 half size baskets
and 1 right side door for cupboard.

Supply voltage:
380-400 V/3N ph/50/60 Hz
Total Watts:
18 kW
Key Information:
Usable well dimensions
(width): 340 mm
Usable well dimensions
(height): 575 mm
Usable well dimensions
(depth): 400 mm
Well capacity: 21 lt MIN; 23 lt MAX
Performance*:
37.5 kg\hr
Thermostat Range: 105 °C MIN; 185 °C MAX
Net weight: 57 kg
